Home > Tool & Components > 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable for RC Multiswitch Hidden Switch

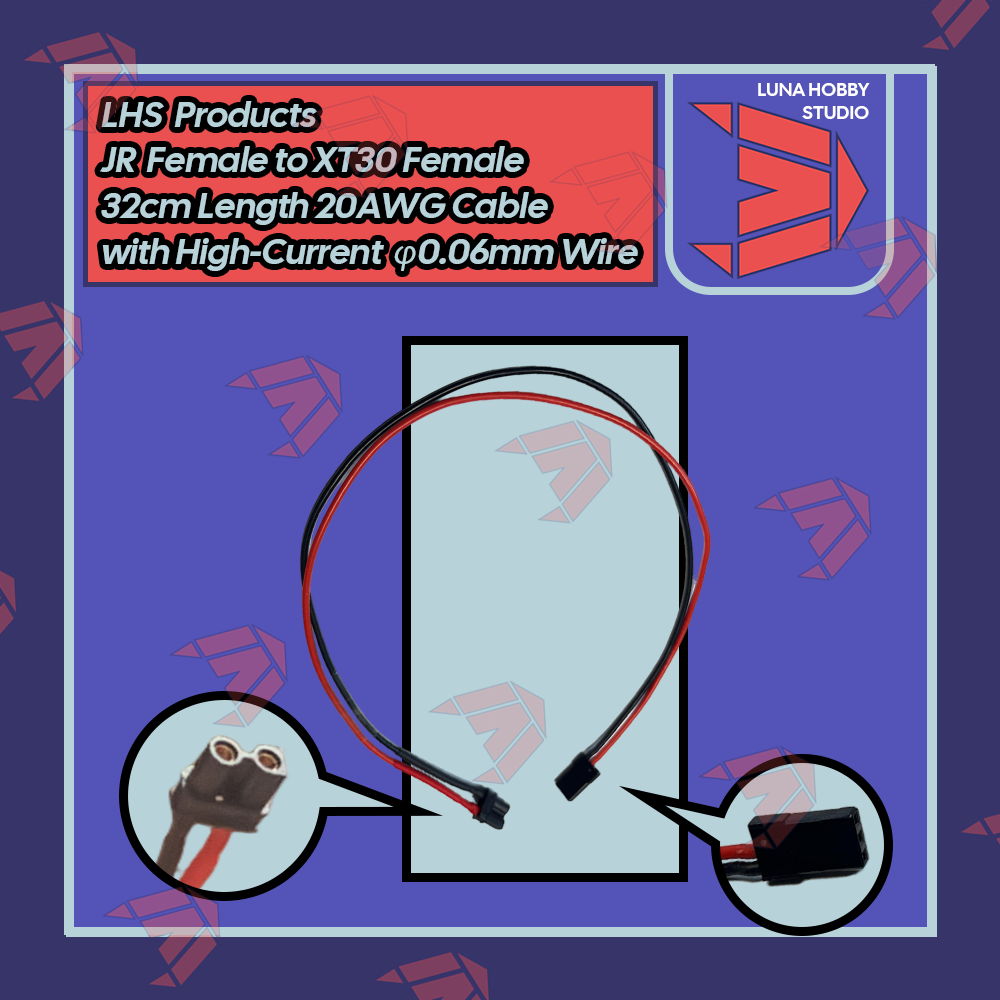

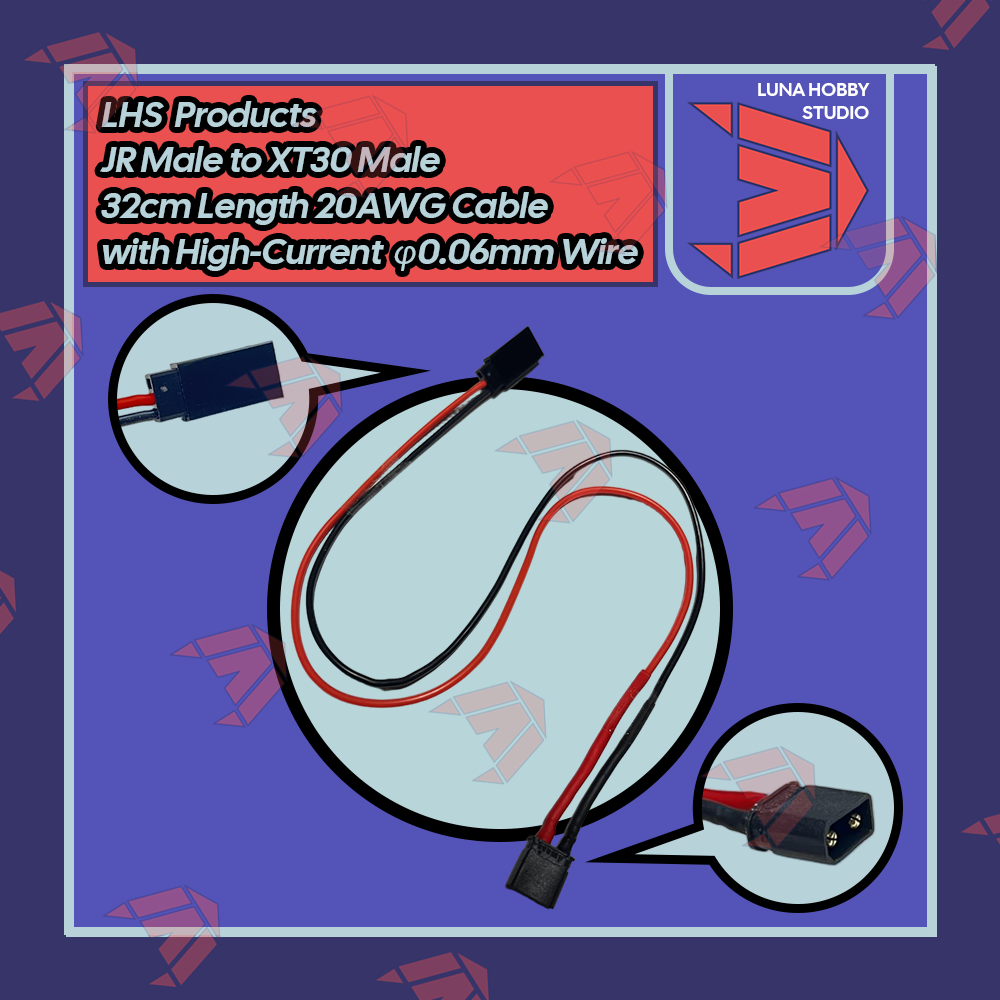

320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable for RC Multiswitch Hidden Switch | Luna Hobby Studio (LHS)

SKU: LHS-2606-07001
0.0 (0)
0 Sold
$49.50 $59.50
Overview
The 320mm extension cable uses high-quality 20AWG silicone wire with a 0.06mm strand diameter, capable of withstanding temperatures up to 200°C. It features a JR connector on one end and an Amass XT30U (black series) on the other, which is compatible with standard XT30 connectors. This design facilitates the installation of hidden switches inside the fuselage of RC fixed-wing aircraft and enables convenient connection with the multiswitch.


Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Option:
    320mm JR to XT30 Female
    320mm JR to XT30 Female
    320mm JR to XT30 Male
    320mm JR to XT30 Male
Quantity:
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
1/1
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
  • 320mm JR Type Connector to Amass Black XT30 XT30U Connector Lead 20AWG Extension Cable | Luna Hobby Studio (LHS)
  • Description
📧 A Message from LUNA HOBBY STUDIO
All products in our store are available for wholesale purchase inquiries.
Customers with such needs or businesses interested in becoming distributors are welcome to contact us at support@lunahobby.com for detailed consultation.



▶︎ SPECIFICATIONS
Brand: LHS Products
Product weight: 6.4g (JR to XT30U Female )
Product weight: 7.5g ( JR to XT30U Male )
Cable Length: 320mm

▶︎
FEATURES

Silicone Cable
Cable Size: 20 AWG
Copper Strand Diameter: 0.06 mm
Cable Outer Diameter: 1.8 mm
Number of Strands: 200
Ultra flexiable silicone wire with a soft outer silicone jacket
Ideal for installation in tight spaces.
Made from eco-friendly, RoHS-compliant materials with no strong odor.
Features high-quality multi-strand tinned copper wire for excellent flexibility.
High current capacity & High-temperature resistance.
Constructed with ultra-fine 0.06 mm tinned copper strands, providing more strands than 0.08 mm wire for improved flexibility and conductivity.

Amass XT30U
Premium H59-1 Brass Alloy Gold-Plated Connector
Solid Male Pin
Continuous Current Rated up to 20A
Lightweight 0.9g Design
Hollowed Mid-Sleeve for Enhanced Heat Dissipation
Anti-Reverse Key Slot
Rugged One-Piece Injection-Molded Construction
High-Quality Heat-Resistant PA66 Nylon Sleeve
Back-to-Back Soldering Friendly
Anti-Slip Design for Easy Plug & Unplug
Raised Injection-Molded Polarity Markings
Compatible with 16AWG or Thinner Wires (≤3mm Heat-Shrink Tubing)
Precision Manufacturing for Light Water Resistance
Interchangeable with All XT30 Variants
UL94-V0 Flame Retardant
High & Low Temperature Resistant (-20°C to 120°C)



⚠️IMPORTANT NOTE❗️
The product information above is reproduced from the official product detail pages of the respective brands.
For the most accurate and up-to-date product specifications and announcements, please refer to the official websites.
