KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders | @LUNA HOBBY STUDIO【LHS】

SKU: RCSER-0001-A
0.0 (0)
0 Sold
$389.00 $399.00
▶︎ Main FEATURES & SPECs
| Torque: 4.5Kgf.cm@4.8V | 6.0Kgf.cm@6.0V | 7.2Kgf.cm@7.4V | 8.0Kgf.cm@8.4V
| Speed: 0.13sec/60°@4.8V0.11sec/60°@6.0V0.09sec/60°@7.4V | 0.08sec/60°@8.4V
|
Programmable

| Supports Soft Start
| Hardened Steel Gears
| Anodized CNC Aluminium Case
| Ultra High Torque & Excellent Speed
| Smaller Size and Larger Travel Angle
| Ideal for Competition Gliders and Large Scale Gliders
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Tab Options:
    (Pro-A) Vertical Tab
    (Pro-A) Vertical Tab
    (Pro-B) Horizontal Tab
    (Pro-B) Horizontal Tab
Quantity:
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
1/1
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • KST X10 Mini Pro Digital Metal Gear Coreless Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders  |  @LUNA HOBBY STUDIO【LHS】
  • Description
📧 A Message from LUNA HOBBY STUDIO
All products in our store are available for wholesale purchase inquiries.
Customers with such needs or businesses interested in becoming distributors are welcome to contact us at sales@luna-hobby.com for detailed consultation.

▶︎ OVERVIEW

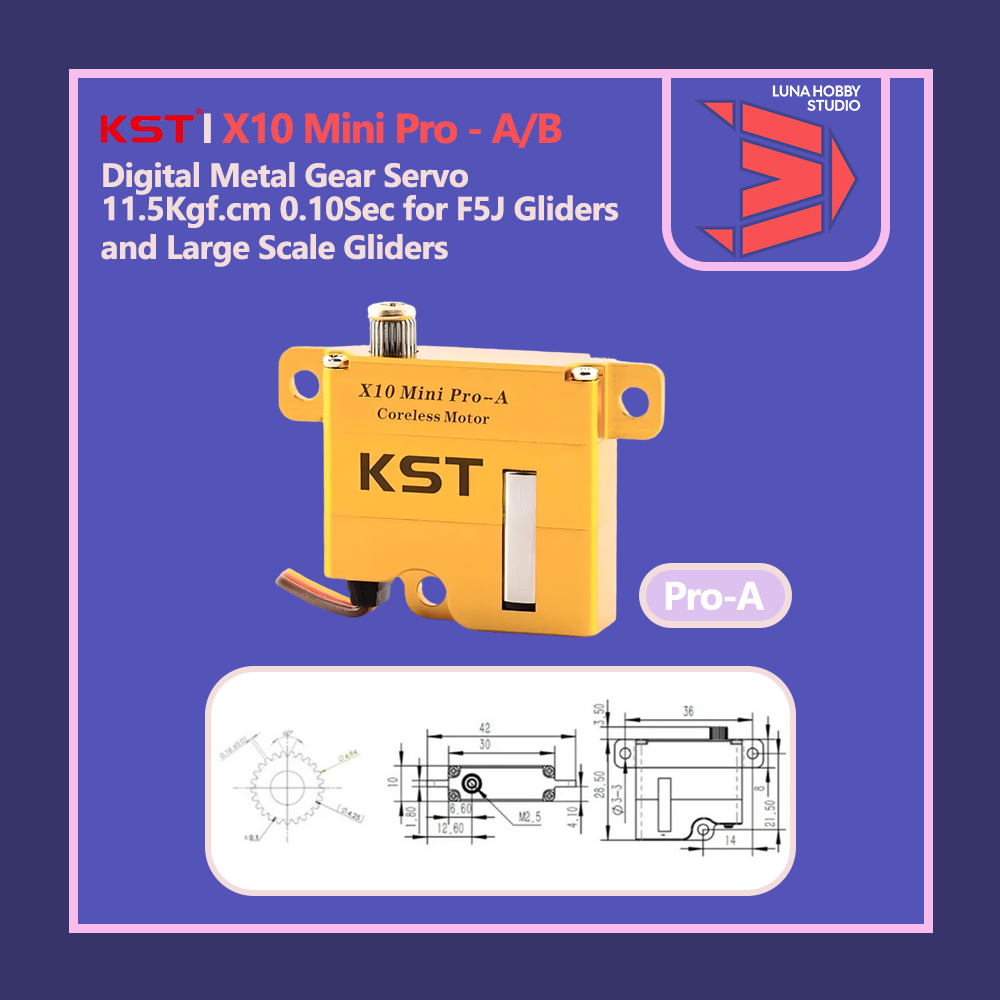

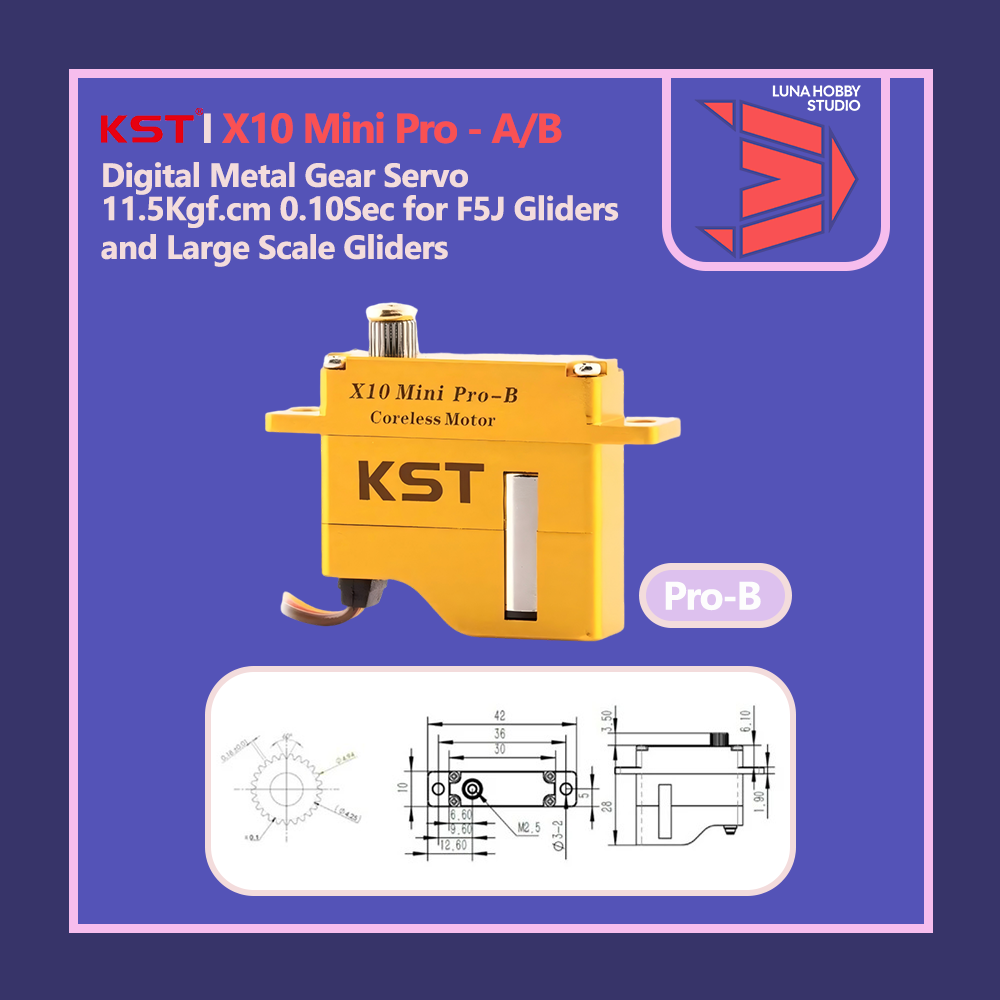

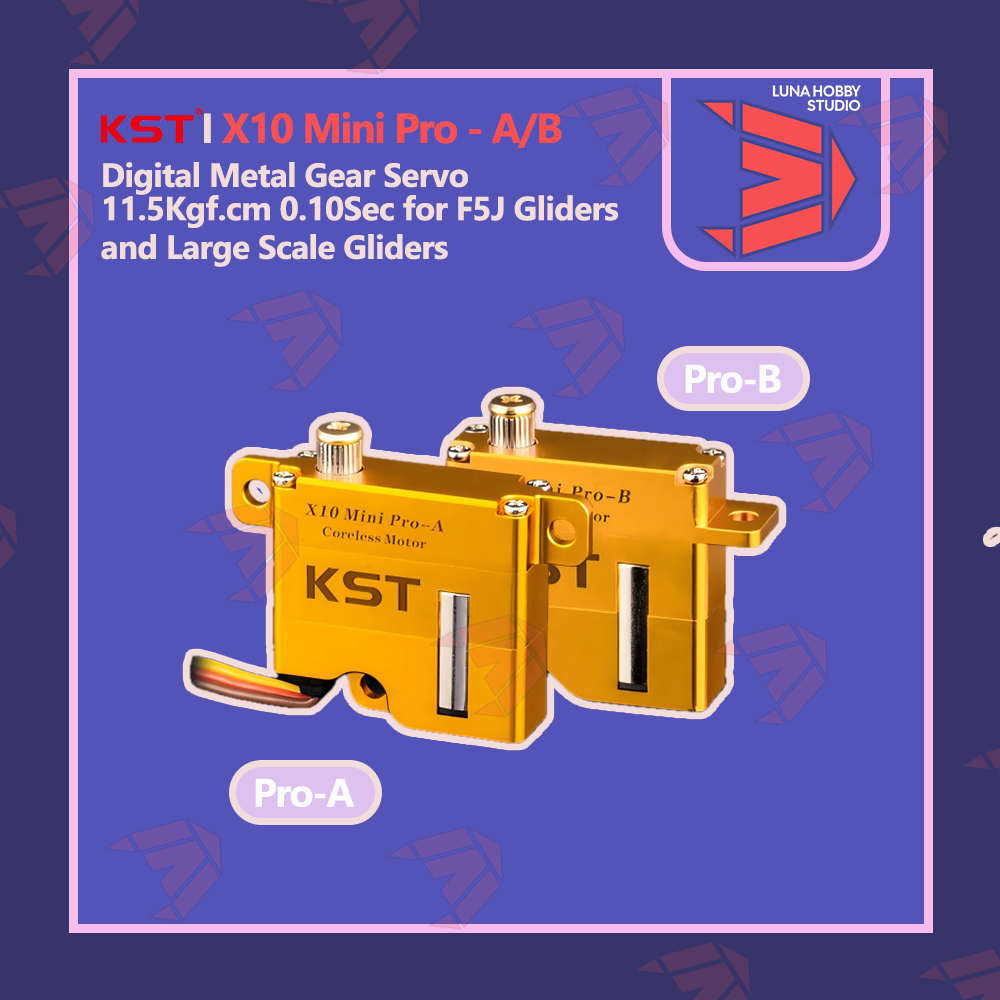

| Brand Model Name: KST | X10 Mini Pro-A / X10 Mini Pro-B Servos
| Package Dimension:
| Package Weight: 35g

▶︎ SPECIFICATIONS
| Weight: 20g(±10%)
| Dimension: 30mm×10mm×28mm(±0.2mm)
| Rated Voltage: DC7.4V

| Voltage Range: DC4.8V-8.4V
| Torque: 4.5Kgf.cm@4.8V | 6.0Kgf.cm@6.0V | 7.2Kgf.cm@7.4V | 8.0Kgf.cm@8.4V
| Speed: 0.13sec/60°@4.8V0.11sec/60°@6.0V0.09sec/60°@7.4V | 0.08sec/60°@8.4V
| Working Frequency: 1520μs/333Hz
| Default Travel Angle: ±60°=120° Total
| Temperature Range: -10℃.......+65℃
| Soft Start: Programmable
| Programmable: Yes
| Case Material: Aluminium Alloy
| Motor Type: Coreless DC Motor
| Gear Set Material: Hardened Steel
| Position Sensor: Potentiometer

▶︎ FEATURES

| Programmable
| Supports Soft Start
| Hardened Steel Gears
| Anodized CNC Aluminium Case
| Ultra High Torque & Excellent Speed
| Smaller Size and Larger Travel Angle
| Ideal for Competition Gliders and Large Scale Gliders
